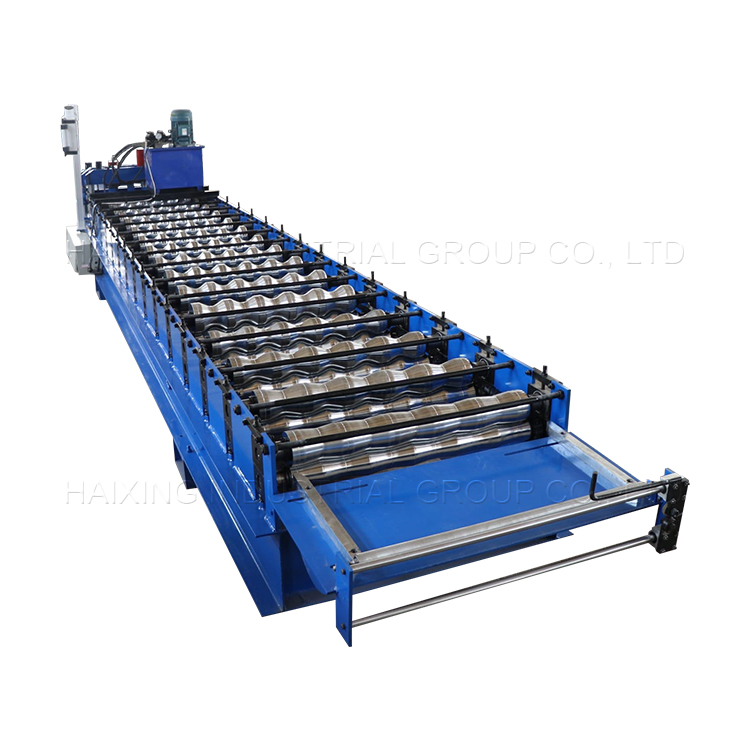

Aluminum glazed sheet roll forming machine

Short Description:

Packaging Details:

1. The main machine is covered by the plastic film.
2. PLC control box, spare parts, and other small parts are packed by wooden carton box.


Product Detail

Product Tags

Aluminum glazed sheet roll forming machine parameters

1 Main motor power 4kW, 3 phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system PLC delta inverter
6 Main frame 300/350 mm H-beam
7 Backboard thickness 16 mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0-15/ min
12 Roll station 13 roll steps (according to different design)
13 Roller diameter 70 mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12
16 Cr-plating size 0.05 mm

Aluminum glazed sheet roll forming machine details

800 glazed roof machine details

Packaging Details:

1. The main machine is covered by the plastic film.
2. PLC control box, spare parts, and other small parts are packed by wooden carton box.

roof machine packaging
