4 meters hydraulic roof sheet bending machine parameters
|
|
1
|
Cutting &Hydraulic type
|
Double guide pillar
|
|
2
|
Hydraulic motor power
|
3kw
|
|
3
|
Hydraulic Pressure
|
10-12MPa
|
|
4
|
Voltage
|
380V/3phase/50 HZ(or as your requirement)
|
|
5
|
Cutting drive
|
Decelerating motor+ Chain drive gear all by high-frequency
|
|
6
|
Control System
|
Panasonic PLC
|
|
8
|
Bending degree
|
0-90
|
|
9
|
Operating mode
|
Button+ Mitsubishi
|
|
10
|
Main Frame
|
300mm/350mm H-Beam or 350mm
|
|
11
|
Backboard Thickness
|
17mm
|
|
12
|
Feeding Material
|
GI/PPGI/PPGL
|
|
14
|
Feeding Thickness
|
0.2-0.8mm
|
|
15
|
Feeding Width
|
1-4m
|
|
16
|
Effective width
|
1-4mm
|
|
17
|
Productivity
|
0-60times/min
|
|
20
|
Roller material
|
45# steel
|
|
21
|
Cutter material
|
Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees
|
|
22
|
Brand Square
|
A3 35mm thick plate arch
|
|
22
|
Cr-Plating Size
|
0.05mm
|
|
23
|
Overall Size
|
4300*1200*2100mm
|
|
24
|
Total Weight
|
1.8T
|

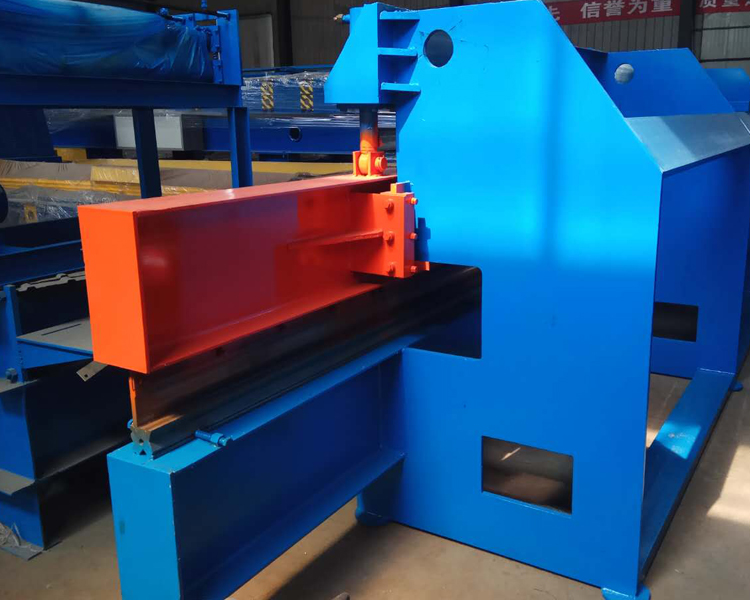

Machine photos
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
