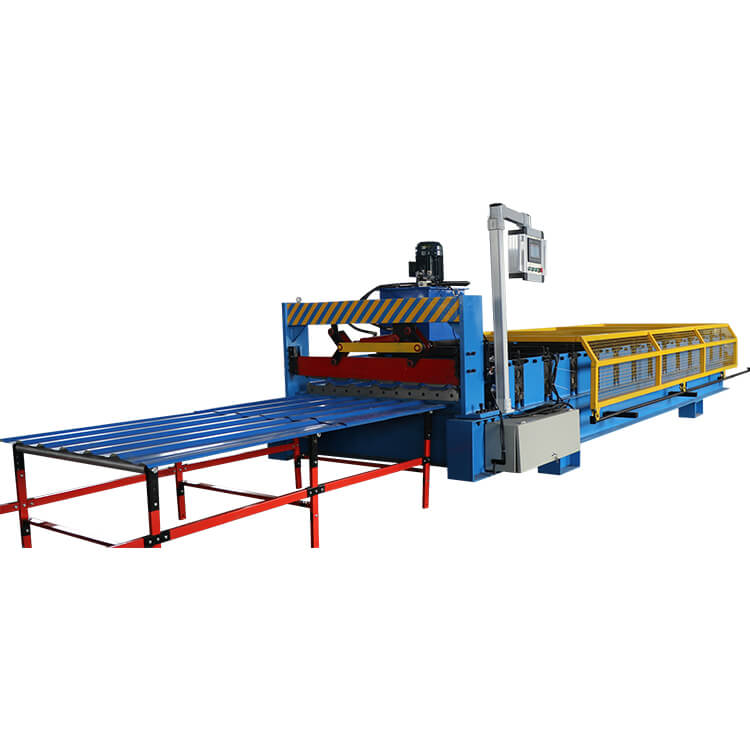

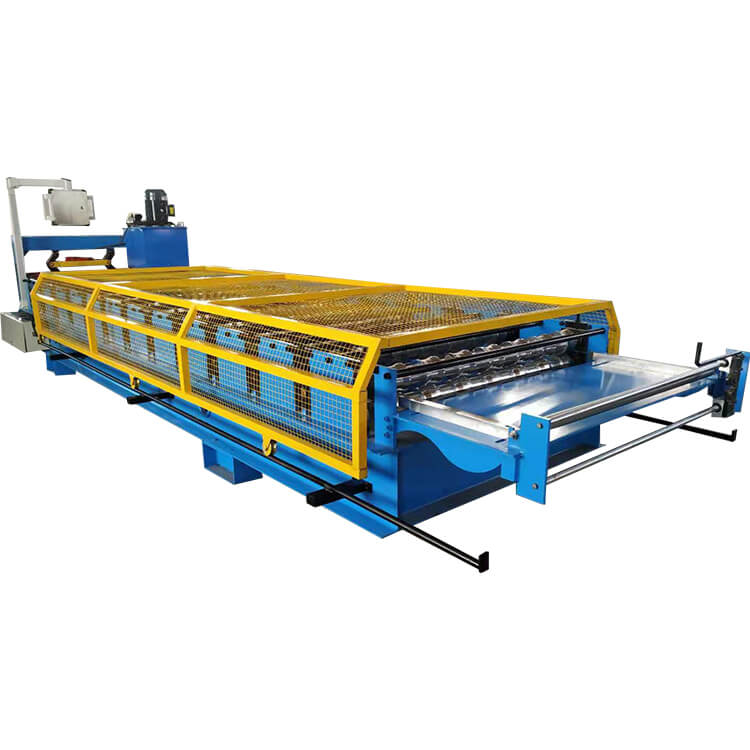

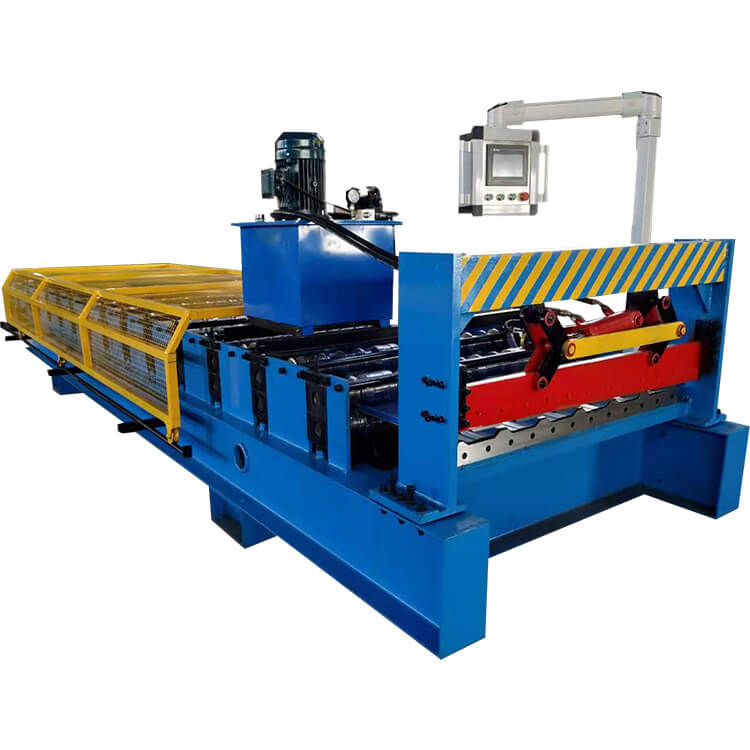

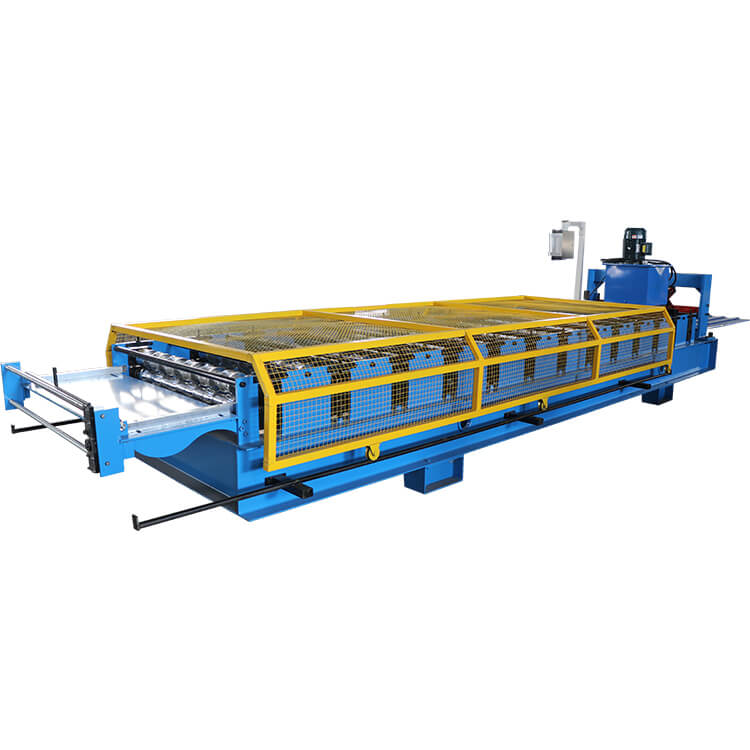

1127 trapezoidal metal sheet roll forming machine

1127 trapezoidal metal sheet roll forming machine parameters

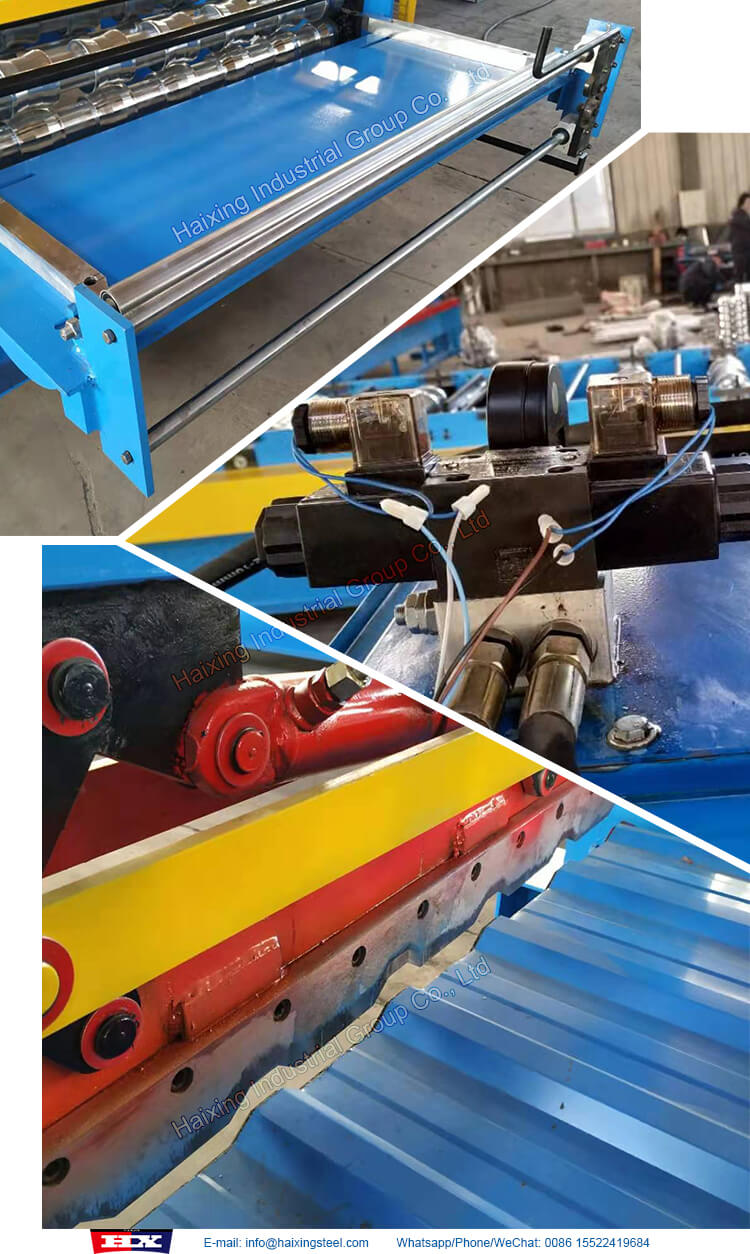

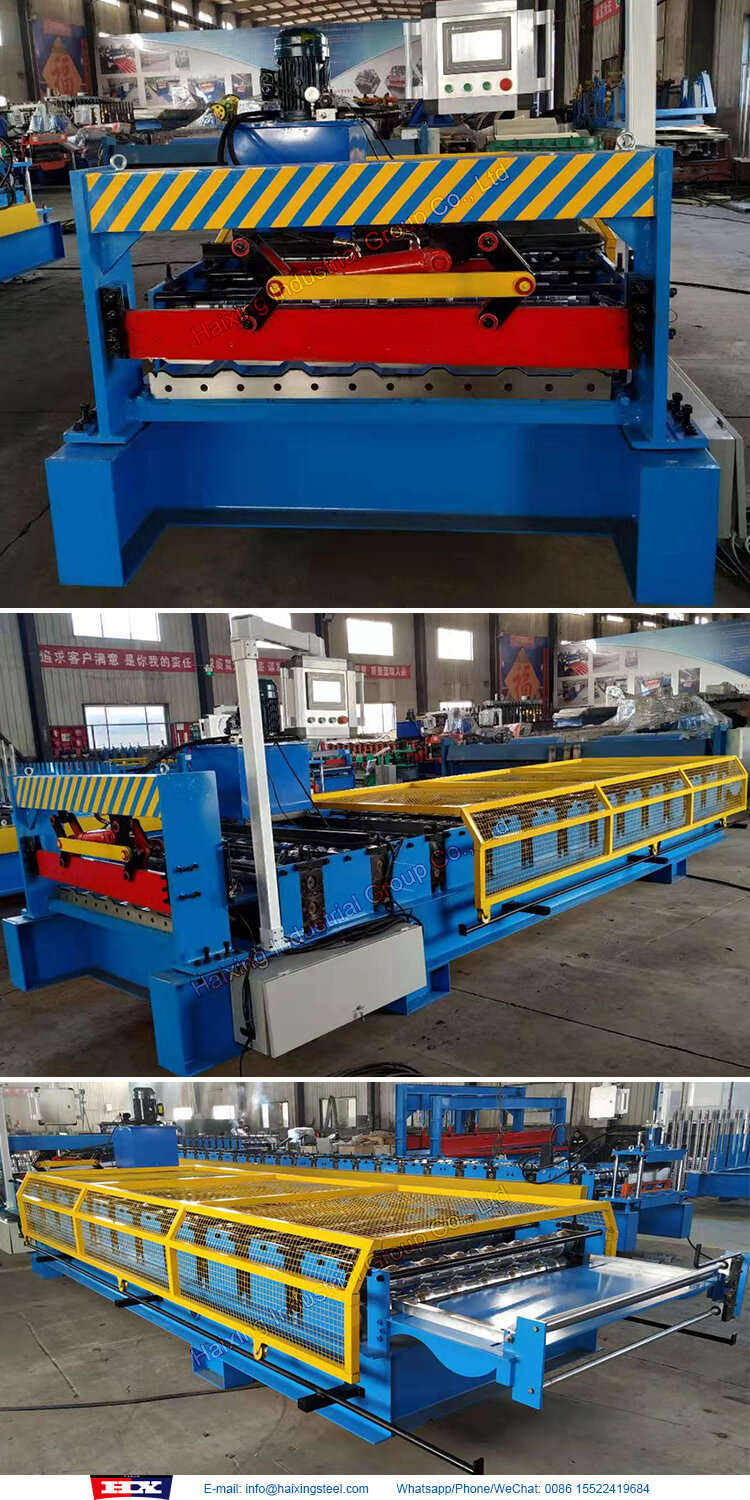

1127 trapezoidal metal sheet roll forming machine picture details

1127 trapezoidal metal sheet roll forming machine parts

01. Mainframe: GB H steel, hard texture.
02. Operator station: 360-degree rotation display.
03. Cutter: The main material is Cr12, which has high hardness.
04. Retaining pad: Prevent the nut from loosening.
05. Easy hanging: Prevent the machine from scratching during the movement.
06. Wheel: generally 45# steel, good hardness.
07. Travel switch: Limit the position or travel of the machine.
08. Rear hand knife: cut in advance to prevent waste.
09. Resin wheel: used to record the length of discharge and record data is more accurate.
10. Electric control cabinet: The main motor and PLC are famous brands.

Packaging & Delivery

Packaging Details:
a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.

Port:
Tianjin, Qingdao, Shanghai, Yiwu port

About us

Tianjin Haixing Imp & Exp Co., Ltd. is a manufacturer and exporter specializing in the design, development and production of cold roll forming machines. The company is located in the northwest of Tianjin, China, and cooperates with a number of production plants and related companies. We have a high-quality professional team, skilled personnel, strong technical force, strong and independent research and development capabilities, advanced production equipment and perfect after-sales service system.
