100% Original Factory Rock Wool Board Production Equipment - Automatic Metal Floor Deck Roll Forming Machine – Haixing Industrial Detail:

Automatic metal floor deck roll forming machine parameters

Feeding platform

1 Frame structure: steel plate welded
2 roller flatting system and pre-hand cutting system
3 Advantage: not scratch the surface of metal plate

Roll forming M/C

1 Machine weight: 13 tons
2 Installation dimensions: 1500*1800*1500mm
3 Machine under frame: steel 400 H-beam
4 Sidewall: 45# steel plates
5 Roller stations: 28 rows
6 Shaft diameter: 85mm
7 Side wall plate: 24mm
8 Main shaft material: 45# steel with finish turning
9 Roller material: 45# forging steel with chromium plate
10 Chromium plate thickness: 0.05mm
11 Motor power: 15kW*2, brand Siemens
12 Reducer type: 2-8# gear speed reducer-Shanghai, China
13 Chain wheel and cycle chain: 1.2-inch
14 Production line speed: 10-12m/minutes

PLC control system

1

Functions: adapts quantity cutting system, length of roof sheet can be set on the computer

2 Tolerance: within 1.0mm
3

Frequency converter: Delta

4

PLC is Siemens

5

Encoder: Omron

6

Touchscreen: Delta

7

Voltage standard: 3 phases 380V/50Hz or according to customer’s need

8

Pressing die material: Cr12

 Hydraulic pressing device

1

Quenched treatment 58 to 62ºC

2

Length tolerance: ±2mm

3

Pump station motor: 5.5kW, LICHAO, Shanghai

4

Hydraulic oil: 40#

Hydraulic cutting device

1

Functions: adapts electric drive and automatic location system to decide the dimension and cut the target

2

Working method: stop to post then post to cut

3

Cutting mold material: Cr12

4

Quenched treatment 58 to 62°C

5

Length tolerance: ±2mm

6

Pump station motor: 5.5kW, LICHAO, Shanghai

Machine photos

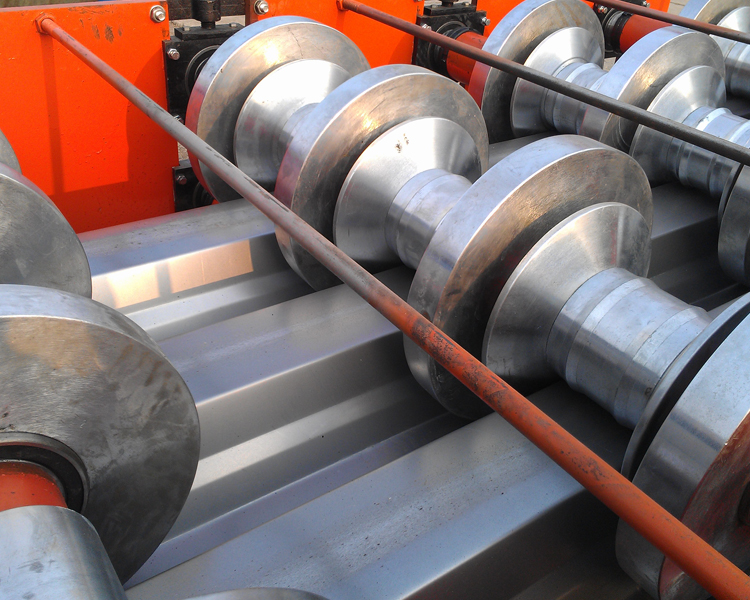

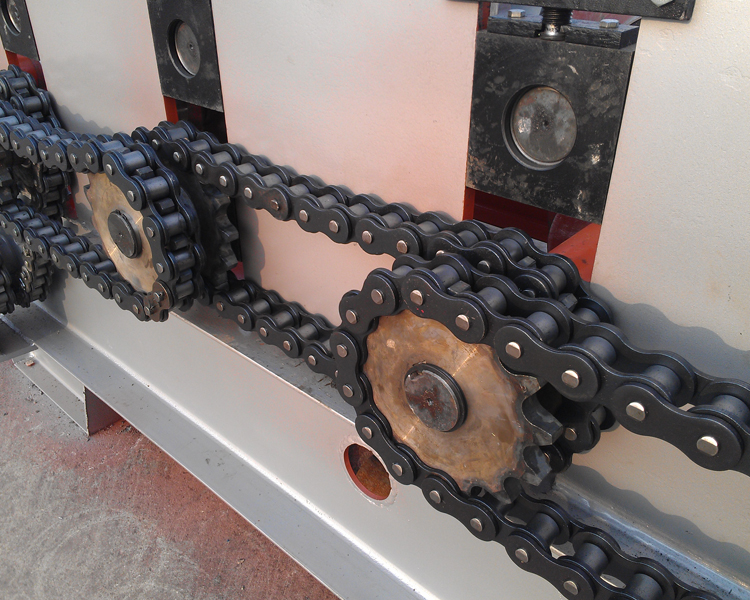

Automatic Metal Floor Deck Roll Forming Machine1 Automatic Metal Floor Deck Roll Forming Machine2

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
